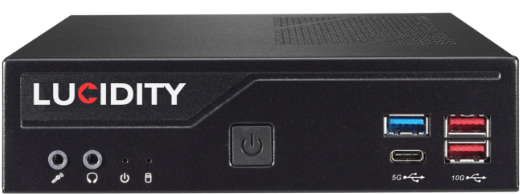

The WBD103 video wall controller is a small form factor controller, with VESA mount, suitable for mounting behind a video wall and incorporates 4x outputs (2x HDMI outputs and 2x DisplayPort), supporting resolutions up to 4k60Hz.
It is passively cooled i.e. it has fans inside. This device is better suited to graphical data in the form of VNC, RDP and websites. It does have a limited decoding capability, supporting a small number of H264/H265 HD@30Hz streams simultaneously.
| Processor | I5 13500 2.5GHz 14 Cores / 20 Threads |
| Chipset | H670 |
| RAM | 32GB DDR4 (MAX 64GB) |
| Storage | 256GB SSD |
| Ethernet | 2x 2.5Gb Ethernet Ports |
| Power Supply | 120W / 19V External PSU |
| OS | Windows 11 Professional |
| Dimensions | 190 x 165 x 43mm (Includes Wall Mount VESA bracket) |
| Output Cards | 2x HDMI v2.0b and 2x DisplayPort v1.4 supporting up to 3840x2160@60Hz (provides for the display of a limited number of IP streams) |
Note: Specifications subject to change
