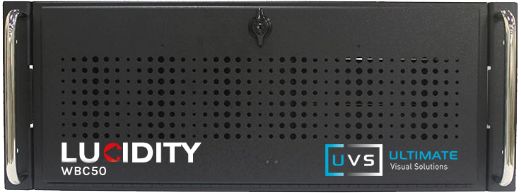

WBC50 Video Wall Controller

WBC50 Video Wall Controller WBC50 Video Wall Controller
430 x 546 x 176mm
64GB ECC DDR5 RAM
XEON W3 -2423 2.1GHz 6-Core / 12 Threads
W790 Chipset 1x 2.5Gb Ports
Ethernet 1x 10Gb
Ethernet 1x 10Gb Ethernet 1x 10Gb W790 Chipset 1x 2.5Gb Ports W790 Chipset 1x 2.5Gb Ports XEON W3 -2423 2.1GHz 6-Core / 12 Threads XEON W3 -2423 2.1GHz 6-Core / 12 Threads 64GB ECC DDR5 RAM 64GB ECC DDR5 RAM 430 x 546 x 176mm 430 x 546 x 176mm
Download Datasheet Get in touch

The WBC50 video wall controller can be configured with the same types of HDMI and IP video decoding input cards as the WBC30, whilst providing a larger five-slot chassis for those with more complex video display requirements.

The WBC50 can also be used to display all types of networked sources and multiple web pages.

WBC50 Specifications

Processor Xeon W3-2423 2.1GHz 6-Core / 12 Threads
Chipset W790
RAM 64GB ECC DDR5 (MAX 2TB)
Storage RAID1 SSD 240GB Hot Swappable
Ethernet 1x 10Gb and 1x 2.5Gb Ethernet Ports
Power Supply 800W RPSU / 100-240V 50-60Hz
OS Windows 10 IoT LTSC 2021 or Windows 11 IoT Enterprise depending on card types
Card Capacity 5 or 4 depending on card types
Rack Profile 4U
Dimensions 430 x 546 x 176mm
Output Cards
MNL-OUT-MDP4-4K-LP-1 4x Mini-DisplayPort @ 5K 60Hz or
2x Mini-DisplayPort @ 8K 60Hz or
2x Mini-DisplayPort @ 5K 120Hz
Supplied with 4x Mini DP to HDMI adapters, supporting 4K@60Hz
24x HD@30Hz RTSP stream decodes
MNL-OUT-DP4-4K-1 4x Display Port @ 5K 60Hz or
2x Display Port @ 8K 60Hz or
2x Display Port @ 5K 120Hz
32x HD@30Hz RTSP stream decodes
MN-OUT-HDMI4-4K-1 / MN-OUT-DP4-4K-1 4x HDMI or Display Port @ 4096x2160 60Hz
HDMI or Display Port to be confirmed with order Maximum of 4 output cards per system
NV-OUT-DP4-4K-1 4x MDP with full size DP adaptors (HDMI / DVI available)
4x 5K 5120x2880 @ 60Hz
4x 4K 3840x2160 @ 120Hz
Input Cards (not all input cards are compatible with all output cards, please contact UVS for your config)
MN-IN-HDMI4-1 4x Mini HDMI 3840x2160@30HZ – mini HDMI to HDMI adapters provided
MN-IN-HDMI4IP12-1 4x Mini HDMI 3840x2160@30Hz / up to 16x HD IP streams – shared resource e.g. 4x HDMI + 12x HD
IP RTSP H264 streams
MN-IN-HDMI4IP12ENC-1 4x Mini HDMI 3840x2160@30Hz / up to 16x HD IP streams. With encoding. Encoding uses same resources as the decoding, so if encoding 2xHD and 4x Inputs then only 10x Decodes allowed

Note: Specifications subject to change
