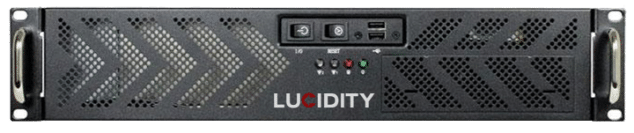

WBC10-W3 Video Wall Controller

WBC10-W3 Video Wall Controller WBC10-W3 Video Wall Controller
430 x 450 x 88mm
64GB ECC DDR5 RAM
XEON W3 -2423 2.1GHz 6-Core / 12 Threads
W790 Chipset
Ethernet 1x 10Gb and 1x 2.5Gb Ports
Ethernet 1x 10Gb and 1x 2.5Gb Ports Ethernet 1x 10Gb and 1x 2.5Gb Ports W790 Chipset W790 Chipset XEON W3 -2423 2.1GHz 6-Core / 12 Threads XEON W3 -2423 2.1GHz 6-Core / 12 Threads 64GB ECC DDR5 RAM 64GB ECC DDR5 RAM 430 x 450 x 88mm 430 x 450 x 88mm
Download Datasheet Get in touch

Our entry-level Lucidity WBC10-W3 video wall controller provides powerful processing capabilities for the display and control of multiple network-based workstations, multiple websites, whilst also supporting RSS feeds and the option for HDMI sources, via HDMI-IP encoders, and IP RTSP camera feeds.

All of the features offered by the Lucidity video wall manager software for network-based sources are available with the WBC10-W3 Lucidity video wall controller, including the optional licenses such as the maximum user function (which includes active directory integration).

WBC10-W3 Specifications

Processor Xeon W3-2423 2.1GHz 6-Core / 12 Threads
Chipset W790
RAM 64GB ECC DDR5 (MAX 2TB)
Storage RAID1 SSD 240GB Hot Swappable
Ethernet 1x 10Gb and 1x 2.5Gb Ethernet Ports
Power Supply 800W RPSU / 100-240V 50-60Hz
OS Windows 11 IoT Enterprise
Card Capacity 5x Low Profile
Rack Profile 2U
Dimensions 430 x 450 x 88mm
Output Cards
MNL-OUT-MDP4-4K-LP-1 4x Mini-DisplayPort @ 5K 60Hz or
2x Mini-DisplayPort @ 8K 60Hz or
2x Mini-DisplayPort @ 5K 120Hz
Supplied with 4x Mini DP to HDMI adapters, supporting 4K@60Hz
24x HD@30Hz RTSP stream decodes
NV-OUT-DP4-4K-1 4x MDP with full size DP adaptors (HDMI / DVI available)
4x 5K 5120x2880 @ 60Hz
4x 4K 3840x2160 @ 120Hz

Note: Specifications subject to change
