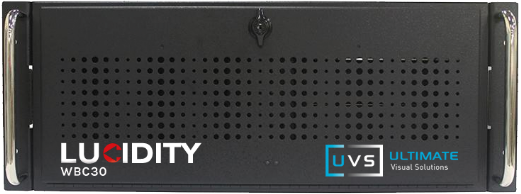

Our new three-slot WBC30 video wall controller offers customisable functionality and can be configured to suit the specific requirements of any smaller video wall display configuration.
With a range of input card types, including multi-channel HDMI and IP video decoding, and output cards, the hardware is compatible with all network-based sources.
| Processor | I9 13900K 3.0Ghz 24 Cores / 32 Threads |
| Chipset | Z790 |
| RAM | 32GB DDR5 (MAX 256GB) |
| Storage | RAID1 SSD 240GB Hot Swappable |
| Ethernet | 2x 2.5Gbps LAN, Intel Wi-Fi 6E |
| Power Supply | 600W RPSU / 100-240V 50-60Hz |
| OS | Windows 10 IoT LTSC 2021 or Windows 11 IoT Enterprise depending on card types |
| Card Capacity | 3 |
| Rack Profile | 4U |
| Dimensions | 430 x 546 x 176mm |
| Output Cards | |
| MNL-OUT-MDP4-4K-LP-1 | 4x Mini-DisplayPort @ 5K 60Hz or 2x Mini-DisplayPort @ 8K 60Hz or 2x Mini-DisplayPort @ 5K 120Hz Supplied with 4x Mini DP to HDMI adapters, supporting 4K@60Hz 24x HD@30Hz RTSP stream decodes |
| MNL-OUT-DP4-4K-1 | 4x Display Port @ 5K 60Hz or 2x Display Port @ 8K 60Hz or 2x Display Port @ 5K 120Hz 32x HD@30Hz RTSP stream decodes |
| MN-OUT-HDMI4-4K-1 / MN-OUT-DP4-4K-1 | 4x HDMI or Display Port @ 4096x2160 60Hz HDMI or Display Port to be confirmed with order Maximum of 4 output cards per system |
| NV-OUT-DP4-4K-1 | 4x MDP with full size DP adaptors (HDMI / DVI available) 4x 5K 5120x2880 @ 60Hz 4x 4K 3840x2160 @ 120Hz |
| Input Cards | (not all input cards are compatible with all output cards, please contact UVS for your config) |
| MN-IN-HDMI4-1 | 4x Mini HDMI 3840x2160@30HZ – mini HDMI to HDMI adapters provided |
| MN-IN-HDMI4IP12-1 | 4x Mini HDMI 3840x2160@30Hz / up to 16x HD IP streams – shared resource e.g. 4x HDMI + 12x HD IP RTSP H264 streams |
| MN-IN-HDMI4IP12ENC-1 | 4x Mini HDMI 3840x2160@30Hz / up to 16x HD IP streams. With encoding. Encoding uses same resources as the decoding, so if encoding 2xHD and 4x Inputs then only 10x Decodes allowed |
Note: Specifications subject to change
